Product Details
Place of Origin: Foshan city,China
Brand Name: Fujitsu
Certification: No
Model Number: F56
Document: F56_FTGB-03-006-EN04.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Price: 1800-2000 USD
Packaging Details: Carton & up to qty
Delivery Time: 1-2 days
Payment Terms: T/T,Western Union,L/C
Supply Ability: 1000 pcs regular stock
|
Dimensions:
|
160mm X 392mm X 375mm
|
Weight:
|
11kg
|
Cassette Capacity:
|
500 Notes Per Cassette
|
Note Count Speed:
|
2 Notes/second
|
Note Dimensions:
|
60mm X 120mm - 82mm X 160mm
|
Power Requirements:
|
DC +24V +-10%, Max 7A
|
|
Dimensions:
|
160mm X 392mm X 375mm
|
|
Weight:
|
11kg
|
|
Cassette Capacity:
|
500 Notes Per Cassette
|
|
Note Count Speed:
|
2 Notes/second
|
|
Note Dimensions:
|
60mm X 120mm - 82mm X 160mm
|
|
Power Requirements:
|
DC +24V +-10%, Max 7A
|

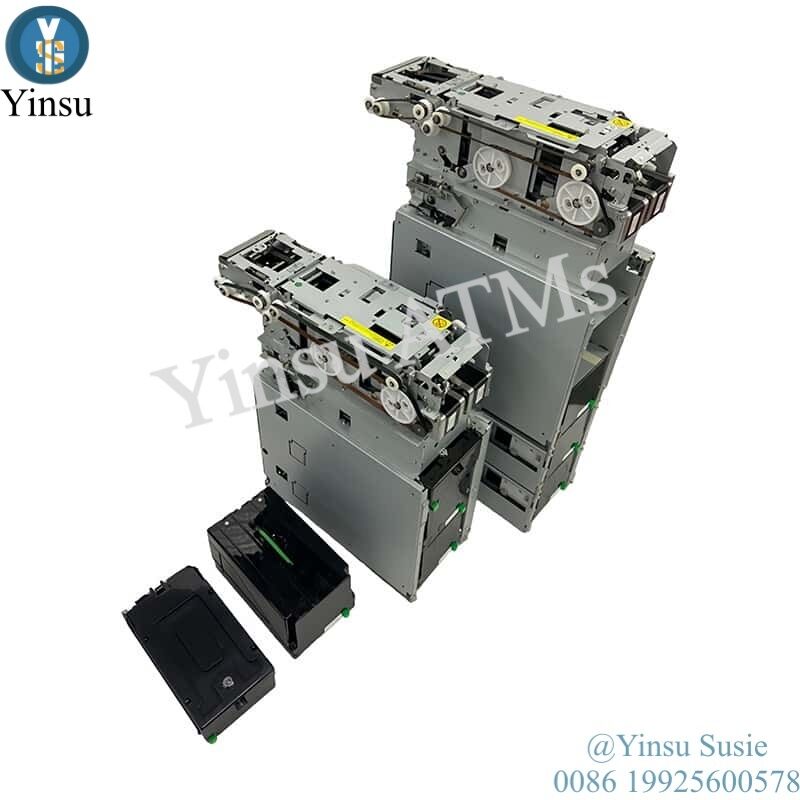

F56 is a compact and multi cassette media dispenser, designed for the OEM market, the Fujitsu F56 dispenser features 6 cassettes to hold up to a total of 3,000 notes or other media.
| Dimensions (W x D x H) 2-denominations |
160mm x 392mm x 375mm Cassette: 116mm x 216mm x 98mm |
|---|---|
| Weight (W/O media) | Approx. 11kg 0.7kg / Cassette |
| Service Access | Front, Rear or Dual |
| Number of Cassettes | Up to 6 Cassettes |
| Note Count Speed | 2 Notes / Second * *It depends on the size and condition of notes. |
| Note Dimension | Max. 82mm x 160mm Min. 60mm x 120mm |
|---|---|
| Note Thickness | 0.09mm - 0.3mm |
| Note Transaction | 20 Notes / Transaction |
| Note Retrieval | Option |
| Shutter | Option |
| Capacities / Denomination | Note storage area: 60mm New US Note 500 each cassette (Approx.) |
|---|---|
| Standard | UL, TUV certified |
| Reject Note Area Capacity | Max. 20 notes |
| Note Low Sensor | Fixed sensor Approx. 40 notes each cassette |
| Interface | RS232C |
| Electrical Power Requirements | DC +24V +-10% Max. 7A Ave. 5A |
|---|---|
| Temperature | Operation 0 ºC - 40 ºC Stop State -5 ºC - 50 ºC |
| Relative Humidity | Operation 10 ~ 85%RH Stop State 8 ~ 95%RH |
Note 1: Above specifications may be changed without prior notice.
Note 2: You may need to check beforehand whether the cash handling machine can handle your banknotes (including polymer banknotes) even if they are within the specified media range
